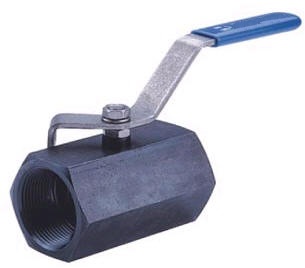

ZT-1P-05

FEATURES

  1. Reduced port, 1/4"~2" (DN8~DN50)
  2. W. P.: 2000WOG (PN150)
  3. W. T.:-20℃ ~200℃ (-4℉~392℉)
  4. Forged body
  5. Blow-out proof stem
  6. Anti-static device (option)
  7. NACE MR0175
  8. ASME B16.34 Wall thickness
  9. Thread type: ASME B1.20.1 (NPT), DIN 2999 & BS21, ISO7/1 & EN10226
