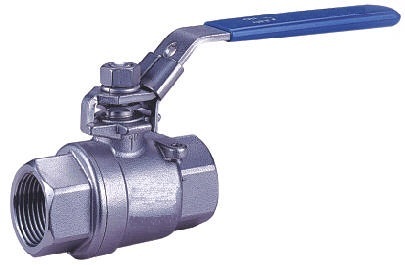

ZT-2P-01

FEATURES

  1. Full port
  2. W. P.: 1/4"~1"-2000 WOG(PN150),1-1/4"~2"-1500WOG(PN100),2-1/2"~4"-1000WOG(PN63)
  3. W. T.:-20℃ ~200℃ (-4℉~392℉)
  4. Investment casting
  5. Blow-out proof stem
  6. Anti-static device (option)
  7. Locking device
  8. Tapped & drilled mounting pad (potion)
  9. TA-Luft approved (option)
  10. Length conform to DIN 3202/4-M3 - 2006M3(option)
  11. Thread type: ASME B1.20.1 (NPT), DIN 2999 & BS21, ISO 7/1 & EN10226
