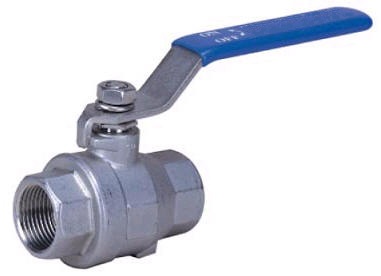

ZT-2P-05

FEATURES

  1. Full port, 1/4"~3" (DN8~DN80)
  2. W. P.: 1000 WOG(PN63)
  3. W. T.:-20℃ ~200℃ (-4℉~392℉)
  4. Investment casting
  5. Blow-out proof stem
  6. Anti-static device (option)
  7. Thread type: ASME B1.20.1 (NPT), DIN 2999 & BS21, ISO7/1 & EN10226
